Note

To run this notebook in JupyterLab, load examples/ex0_0.ipynb

demo: TextGraphs + LLMs to construct a 'lemma graph'

TextGraphs library is intended for iterating through a sequence of paragraphs.

environment

from IPython.display import display, HTML, Image, SVG
import pathlib
import typing

from icecream import ic
from pyinstrument import Profiler
import matplotlib.pyplot as plt
import pandas as pd
import pyvis
import spacy

import textgraphs
%load_ext watermark
%watermark
Last updated: 2024-01-16T17:41:51.229985-08:00

Python implementation: CPython
Python version       : 3.10.11
IPython version      : 8.20.0

Compiler    : Clang 13.0.0 (clang-1300.0.29.30)
OS          : Darwin
Release     : 21.6.0
Machine     : x86_64
Processor   : i386
CPU cores   : 8
Architecture: 64bit
%watermark --iversions
sys       : 3.10.11 (v3.10.11:7d4cc5aa85, Apr  4 2023, 19:05:19) [Clang 13.0.0 (clang-1300.0.29.30)]
spacy     : 3.7.2
pandas    : 2.1.4
matplotlib: 3.8.2
textgraphs: 0.5.0
pyvis     : 0.3.2

parse a document

provide the source text

SRC_TEXT: str = """
Werner Herzog is a remarkable filmmaker and an intellectual originally from Germany, the son of Dietrich Herzog.
After the war, Werner fled to America to become famous.
"""

set up the statistical stack profiling

profiler: Profiler = Profiler()
profiler.start()

set up the TextGraphs pipeline

tg: textgraphs.TextGraphs = textgraphs.TextGraphs(
    factory = textgraphs.PipelineFactory(
        spacy_model = textgraphs.SPACY_MODEL,
        ner = None,
        kg = textgraphs.KGWikiMedia(
            spotlight_api = textgraphs.DBPEDIA_SPOTLIGHT_API,
            dbpedia_search_api = textgraphs.DBPEDIA_SEARCH_API,
            dbpedia_sparql_api = textgraphs.DBPEDIA_SPARQL_API,
            wikidata_api = textgraphs.WIKIDATA_API,
            min_alias = textgraphs.DBPEDIA_MIN_ALIAS,
            min_similarity = textgraphs.DBPEDIA_MIN_SIM,
        ),
        infer_rels = [
            textgraphs.InferRel_OpenNRE(
                model = textgraphs.OPENNRE_MODEL,
                max_skip = textgraphs.MAX_SKIP,
                min_prob = textgraphs.OPENNRE_MIN_PROB,
            ),
            textgraphs.InferRel_Rebel(
                lang = "en_XX",
                mrebel_model = textgraphs.MREBEL_MODEL,
            ),
        ],
    ),
)

pipe: textgraphs.Pipeline = tg.create_pipeline(
    SRC_TEXT.strip(),
)

visualize the parse results

spacy.displacy.render(
    pipe.ner_doc,
    style = "ent",
    jupyter = True,
)

Werner Herzog PERSON is a remarkable filmmaker and an intellectual originally from Germany GPE , the son of Dietrich Herzog PERSON .
After the war, Werner PERSON fled to America GPE to become famous.

parse_svg: str = spacy.displacy.render(
    pipe.ner_doc,
    style = "dep",
    jupyter = False,
)

display(SVG(parse_svg))

svg

collect graph elements from the parse

tg.collect_graph_elements(
    pipe,
    debug = False,
)
ic(len(tg.nodes.values()));
ic(len(tg.edges.values()));
ic| len(tg.nodes.values()): 36
ic| len(tg.edges.values()): 42

perform entity linking

tg.perform_entity_linking(
    pipe,
    debug = False,
)

infer relations

inferred_edges: list = await tg.infer_relations_async(
    pipe,
    debug = False,
)

inferred_edges
[Edge(src_node=0, dst_node=10, kind=<RelEnum.INF: 2>, rel='https://schema.org/nationality', prob=1.0, count=1),
 Edge(src_node=15, dst_node=0, kind=<RelEnum.INF: 2>, rel='https://schema.org/children', prob=1.0, count=1),
 Edge(src_node=27, dst_node=22, kind=<RelEnum.INF: 2>, rel='https://schema.org/event', prob=1.0, count=1)]

construct a lemma graph

tg.construct_lemma_graph(
    debug = False,
)

extract ranked entities

tg.calc_phrase_ranks(
    pr_alpha = textgraphs.PAGERANK_ALPHA,
    debug = False,
)

show the resulting entities extracted from the document

df: pd.DataFrame = tg.get_phrases_as_df()
df
node_id text pos label count weight
0 0 Werner Herzog PROPN dbr:Werner_Herzog 1 0.080547
1 10 Germany PROPN dbr:Germany 1 0.080437
2 15 Dietrich Herzog PROPN dbo:Person 1 0.079048
3 27 America PROPN dbr:United_States 1 0.079048
4 24 Werner PROPN dbo:Person 1 0.077633
5 4 filmmaker NOUN owl:Thing 1 0.076309
6 22 war NOUN owl:Thing 1 0.076309
7 32 a remarkable filmmaker noun_chunk None 1 0.076077
8 7 intellectual NOUN owl:Thing 1 0.074725
9 13 son NOUN owl:Thing 1 0.074725
10 33 an intellectual noun_chunk None 1 0.074606
11 34 the son noun_chunk None 1 0.074606
12 35 the war noun_chunk None 1 0.074606

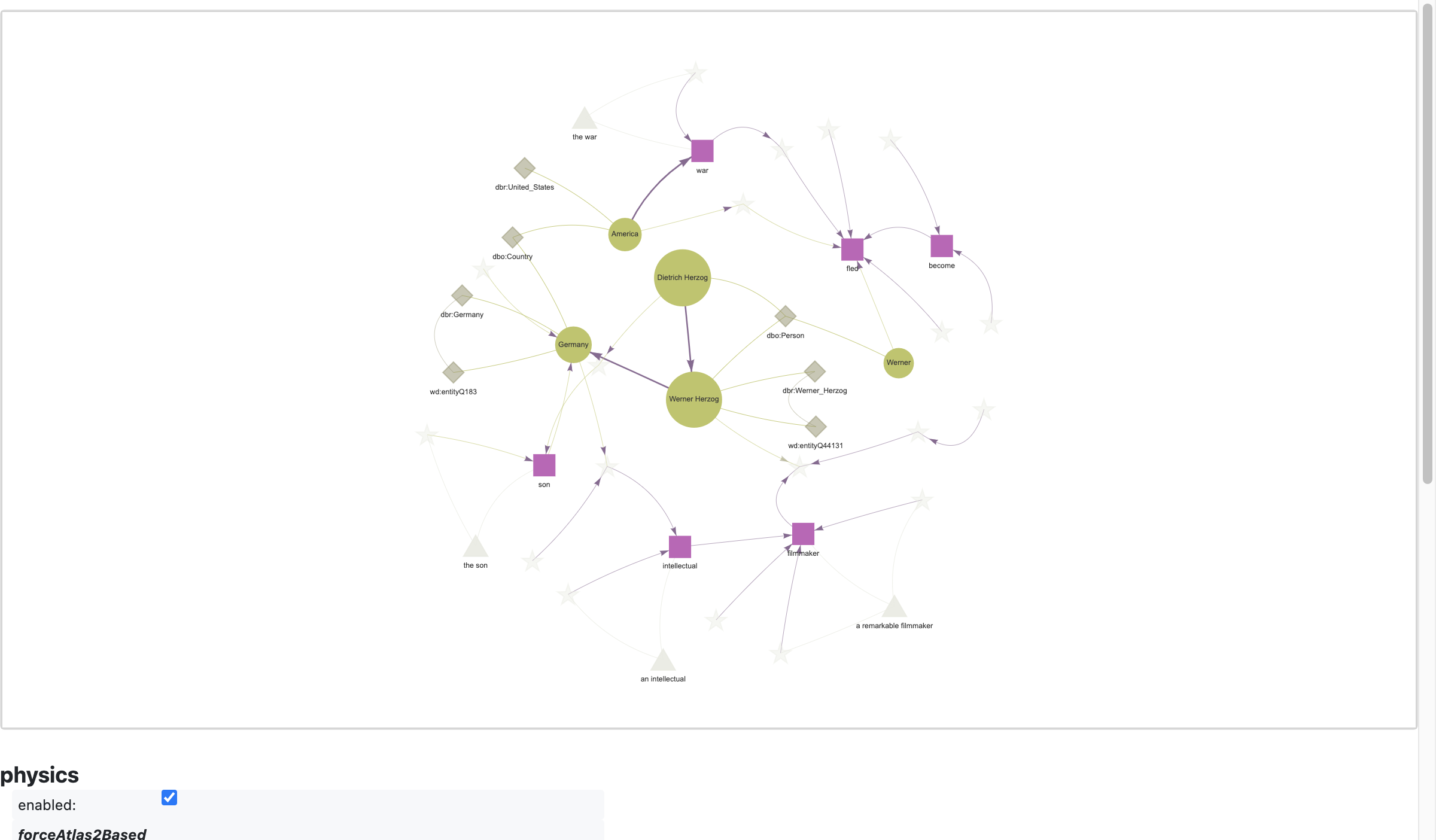

visualize the lemma graph

render: textgraphs.RenderPyVis = tg.create_render()

pv_graph: pyvis.network.Network = render.render_lemma_graph(
    debug = False,
)

initialize the layout parameters

pv_graph.force_atlas_2based(
    gravity = -38,
    central_gravity = 0.01,
    spring_length = 231,
    spring_strength = 0.7,
    damping = 0.8,
    overlap = 0,
)

pv_graph.show_buttons(filter_ = [ "physics" ])
pv_graph.toggle_physics(True)
pv_graph.prep_notebook()
pv_graph.show("tmp.fig01.html")
tmp.fig01.html

png

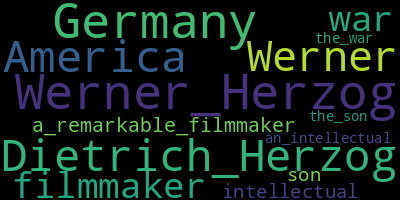

generate a word cloud

wordcloud = render.generate_wordcloud()
display(wordcloud.to_image())

png

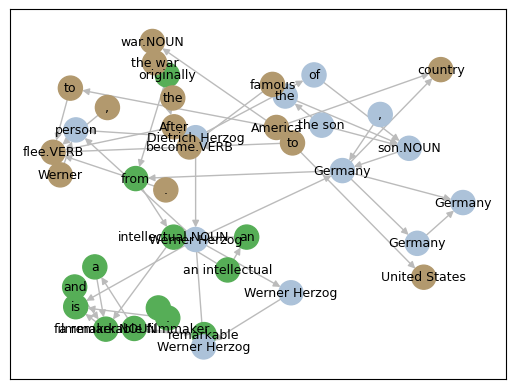

cluster communities in the lemma graph

In the tutorial "How to Convert Any Text Into a Graph of Concepts", Rahul Nayak uses the girvan-newman algorithm to split the graph into communities, then clusters on those communities. His approach works well for unsupervised clustering of key phrases which have been extracted from many documents. In contrast, Nayak was working with entities extracted from "chunks" of text, not with a text graph.

render.draw_communities();

png

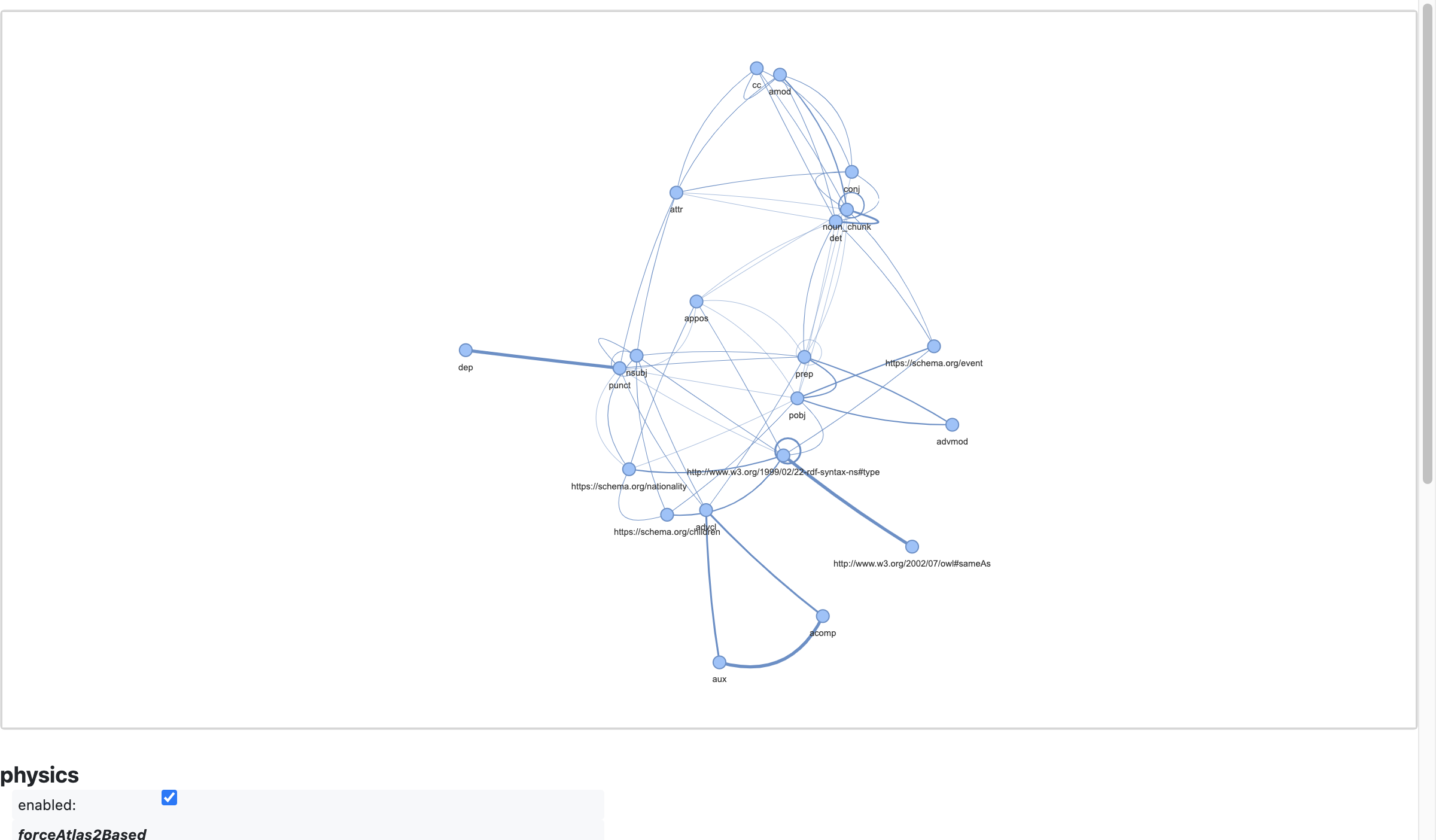

graph of relations transform

Show a transformed graph, based on graph of relations (see: lee2023ingram)

graph: textgraphs.GraphOfRelations = textgraphs.GraphOfRelations(
    tg
)

graph.seeds()
graph.construct_gor()
scores: typing.Dict[ tuple, float ] = graph.get_affinity_scores()
pv_graph: pyvis.network.Network = graph.render_gor_pyvis(scores)

pv_graph.force_atlas_2based(
    gravity = -38,
    central_gravity = 0.01,
    spring_length = 231,
    spring_strength = 0.7,
    damping = 0.8,
    overlap = 0,
)

pv_graph.show_buttons(filter_ = [ "physics" ])
pv_graph.toggle_physics(True)

pv_graph.prep_notebook()
pv_graph.show("tmp.fig02.html")
tmp.fig02.html

png

What does this transform provide?

By using a graph of relations dual representation of our graph data, first and foremost we obtain a more compact representation of the relations in the graph, and means of making inferences (e.g., link prediction) where there is substantially more invariance in the training data.

Also recognize that for a parse graph of a paragraph in the English language, the most interesting nodes will probably be either subjects (nsubj) or direct objects (pobj). Here in the graph of relations we see illustrated how the important details from entity linking tend to cluster near either nsubj or pobj entities, connected through punctuation. This is not as readily observed in the earlier visualization of the lemma graph.

extract as RDF triples

Extract the nodes and edges which have IRIs, to create an "abstraction layer" as a semantic graph at a higher level of detail above the lemma graph:

triples: str = tg.export_rdf()
print(triples)
@base <https://github.com/DerwenAI/textgraphs/ns/> .
@prefix dbo: <http://dbpedia.org/ontology/> .
@prefix dbr: <http://dbpedia.org/resource/> .
@prefix schema: <https://schema.org/> .
@prefix skos: <http://www.w3.org/2004/02/skos/core#> .
@prefix wd_ent: <http://www.wikidata.org/entity/> .

dbr:Germany skos:definition "Germany (German: Deutschland, German pronunciation: [ˈdɔʏtʃlant]), constitutionally the Federal"@en ;
    skos:prefLabel "Germany"@en .

dbr:United_States skos:definition "The United States of America (USA), commonly known as the United States (U.S. or US) or America"@en ;
    skos:prefLabel "United States"@en .

dbr:Werner_Herzog skos:definition "Werner Herzog (German: [ˈvɛɐ̯nɐ ˈhɛɐ̯tsoːk]; born 5 September 1942) is a German film director"@en ;
    skos:prefLabel "Werner Herzog"@en .

wd_ent:Q183 skos:definition "country in Central Europe"@en ;
    skos:prefLabel "Germany"@en .

wd_ent:Q44131 skos:definition "German film director, producer, screenwriter, actor and opera director"@en ;
    skos:prefLabel "Werner Herzog"@en .

<entity/america_PROPN> a dbo:Country ;
    skos:prefLabel "America"@en ;
    schema:event <entity/war_NOUN> .

<entity/dietrich_PROPN_herzog_PROPN> a dbo:Person ;
    skos:prefLabel "Dietrich Herzog"@en ;
    schema:children <entity/werner_PROPN_herzog_PROPN> .

<entity/filmmaker_NOUN> skos:prefLabel "filmmaker"@en .

<entity/intellectual_NOUN> skos:prefLabel "intellectual"@en .

<entity/son_NOUN> skos:prefLabel "son"@en .

<entity/werner_PROPN> a dbo:Person ;
    skos:prefLabel "Werner"@en .

<entity/germany_PROPN> a dbo:Country ;
    skos:prefLabel "Germany"@en .

<entity/war_NOUN> skos:prefLabel "war"@en .

<entity/werner_PROPN_herzog_PROPN> a dbo:Person ;
    skos:prefLabel "Werner Herzog"@en ;
    schema:nationality <entity/germany_PROPN> .

dbo:Country skos:definition "Countries, cities, states"@en ;
    skos:prefLabel "country"@en .

dbo:Person skos:definition "People, including fictional"@en ;
    skos:prefLabel "person"@en .

statistical stack profile instrumentation

profiler.stop()
<pyinstrument.session.Session at 0x141446080>
profiler.print()
  _     ._   __/__   _ _  _  _ _/_   Recorded: 17:41:51  Samples:  11163
 /_//_/// /_\ / //_// / //_'/ //     Duration: 57.137    CPU time: 72.235
/   _/                      v4.6.1

Program: /Users/paco/src/textgraphs/venv/lib/python3.10/site-packages/ipykernel_launcher.py -f /Users/paco/Library/Jupyter/runtime/kernel-8ffadb7d-3b45-4e0e-a94f-f098e5ad9fbe.json

57.136 _UnixSelectorEventLoop._run_once  asyncio/base_events.py:1832
└─ 57.135 Handle._run  asyncio/events.py:78
      [12 frames hidden]  asyncio, ipykernel, IPython
         41.912 ZMQInteractiveShell.run_ast_nodes  IPython/core/interactiveshell.py:3394
         ├─ 20.701 <module>  ../ipykernel_5151/1245857438.py:1
           └─ 20.701 TextGraphs.perform_entity_linking  textgraphs/doc.py:534
              └─ 20.701 KGWikiMedia.perform_entity_linking  textgraphs/kg.py:306
                 ├─ 10.790 KGWikiMedia._link_kg_search_entities  textgraphs/kg.py:932
                   └─ 10.787 KGWikiMedia.dbpedia_search_entity  textgraphs/kg.py:641
                      └─ 10.711 get  requests/api.py:62
                            [37 frames hidden]  requests, urllib3, http, socket, ssl,...
                 ├─ 9.143 KGWikiMedia._link_spotlight_entities  textgraphs/kg.py:851
                   └─ 9.140 KGWikiMedia.dbpedia_search_entity  textgraphs/kg.py:641
                      └─ 9.095 get  requests/api.py:62
                            [37 frames hidden]  requests, urllib3, http, socket, ssl,...
                 └─ 0.768 KGWikiMedia._secondary_entity_linking  textgraphs/kg.py:1060
                    └─ 0.768 KGWikiMedia.wikidata_search  textgraphs/kg.py:575
                       └─ 0.765 KGWikiMedia._wikidata_endpoint  textgraphs/kg.py:444
                          └─ 0.765 get  requests/api.py:62
                                [7 frames hidden]  requests, urllib3
         └─ 19.514 <module>  ../ipykernel_5151/1708547378.py:1
            ├─ 14.502 InferRel_Rebel.__init__  textgraphs/rel.py:121
              └─ 14.338 pipeline  transformers/pipelines/__init__.py:531
                    [39 frames hidden]  transformers, torch, <built-in>, json
            ├─ 3.437 PipelineFactory.__init__  textgraphs/pipe.py:434
              └─ 3.420 load  spacy/__init__.py:27
                    [20 frames hidden]  spacy, en_core_web_sm, catalogue, imp...
            ├─ 0.900 InferRel_OpenNRE.__init__  textgraphs/rel.py:33
              └─ 0.888 get_model  opennre/pretrain.py:126
            └─ 0.672 TextGraphs.create_pipeline  textgraphs/doc.py:103
               └─ 0.672 PipelineFactory.create_pipeline  textgraphs/pipe.py:508
                  └─ 0.672 Pipeline.__init__  textgraphs/pipe.py:216
                     └─ 0.672 English.__call__  spacy/language.py:1016
                           [11 frames hidden]  spacy, spacy_dbpedia_spotlight, reque...
         14.363 InferRel_Rebel.gen_triples_async  textgraphs/pipe.py:188
         ├─ 13.670 InferRel_Rebel.gen_triples  textgraphs/rel.py:259
           ├─ 12.439 InferRel_Rebel.tokenize_sent  textgraphs/rel.py:145
             └─ 12.436 TranslationPipeline.__call__  transformers/pipelines/text2text_generation.py:341
                   [42 frames hidden]  transformers, torch, <built-in>
           └─ 1.231 KGWikiMedia.resolve_rel_iri  textgraphs/kg.py:370
              └─ 0.753 get_entity_dict_from_api  qwikidata/linked_data_interface.py:21
                    [8 frames hidden]  qwikidata, requests, urllib3
         └─ 0.693 InferRel_OpenNRE.gen_triples  textgraphs/rel.py:58

outro

[ more parts are in progress, getting added to this demo ]
